Foil-Scrim-PE backing (foil: 18u / 2 Way Scrim: 5x5mm / polyethylene: 25 gsm) combined with cold air solvent acrylic adhesive, protected by an easy-release silicone paper. Excellent heat and light reflection. Good resistance to aging both indoors and outdoors. Low moisture vapor permeability provides excellent sealing properties.

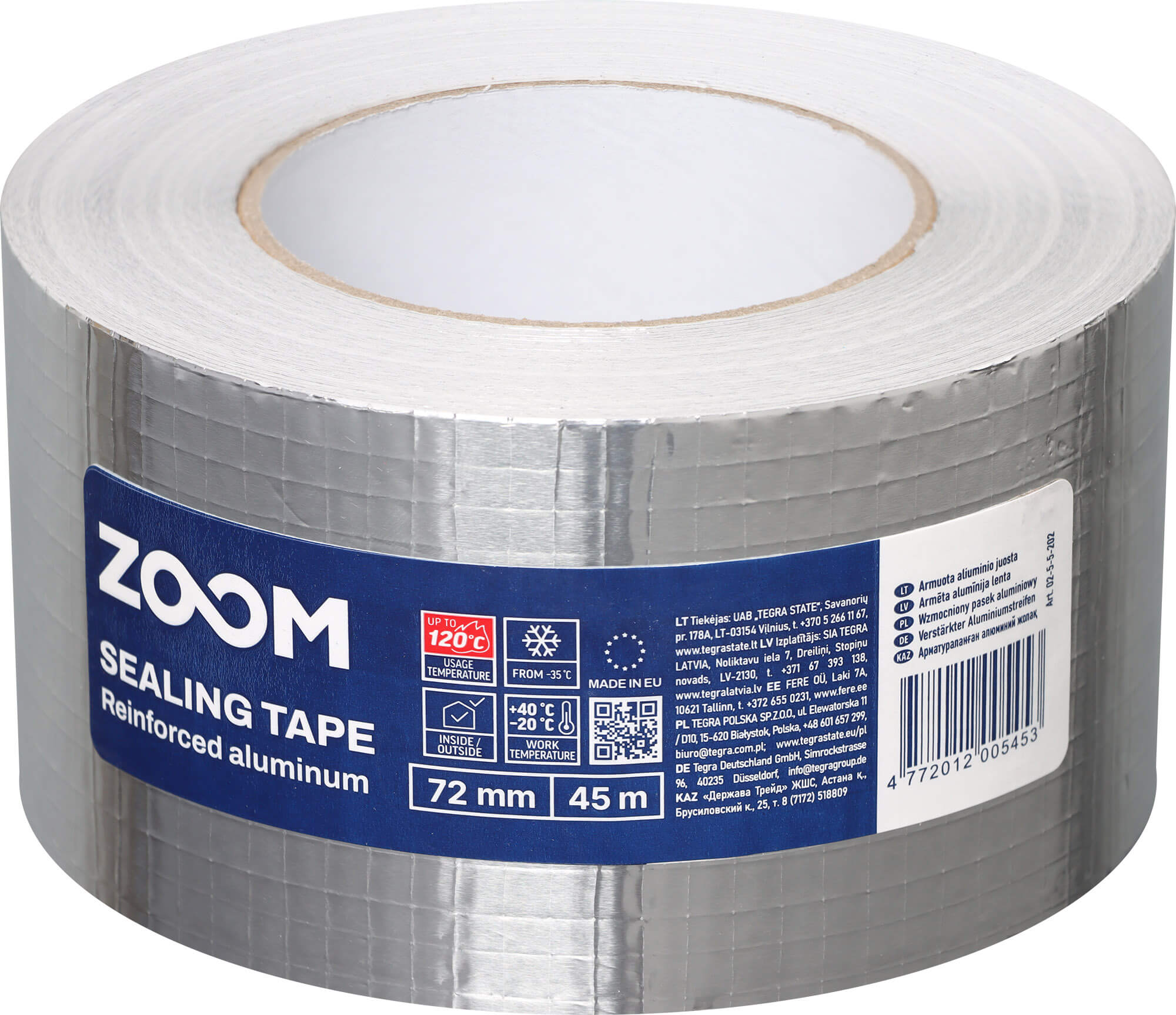

ZOOM Adhesive Reinforced Aluminum Tape, 72 mm x 45 m
Strengthened aluminium tape 72 mm x 45 m is used to seal joints and seams when installing reflective insulation, for heat loss reduction, prevention of vapour intrusion, sealing of pipe joints, ventilation ducts, enclosures and other assemblies.
- For duct and pipe securing
- For heating and cooling systems
- For ventilation systems
In the HVAC industry, for sealing and bonding foil-Scrim-PE with laminated fiberglass blanket/duct board/pipe sections joints and seams; for bonding and sealing joints and joints of flexible air ducts. It can also be used for other industrial applications where a tape with these properties and advantages is required.
| Parameter | Value |
|---|---|
| Support material thickness | 43 µm (±10%) |
| Total tape thickness | 83 µm (±10%) |
| Adhesion to steel | 15 N/25 mm |
| Stickiness when rolling a ball | 5 cm |
| Tensile strength | 100 N/25 mm |
| Stretching | 3.0% |
| Operating temperature | -35 °C ~ +120 °C |
| Bonding temperature | -20 °C ~ +40 °C |
12 months when stored at 21°C / 50% relative humidity, out of direct sunlight.
